NXP® i.MX 8QuadMax, 2x Arm Cortex™-A72, 4x Arm Cortex™-A53, 1.6 GHz (A72), 1.26 GHz (A53), 266 MHz (M4), 4GB LPDDR4 (64 Bit), 16GB eMMC, Gigabit with AVB (+2nd RGMII) Ethernet, -40° to +85° C(1) Temp. Range, Availability until 2030+
محصولات مرتبط
سازنده
TORADEX
وضعیت قطعه
اورجینال
مدل

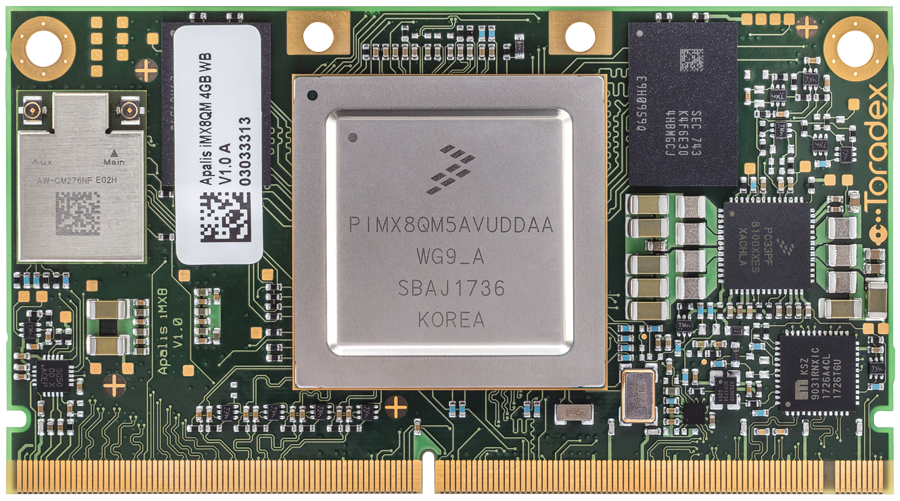

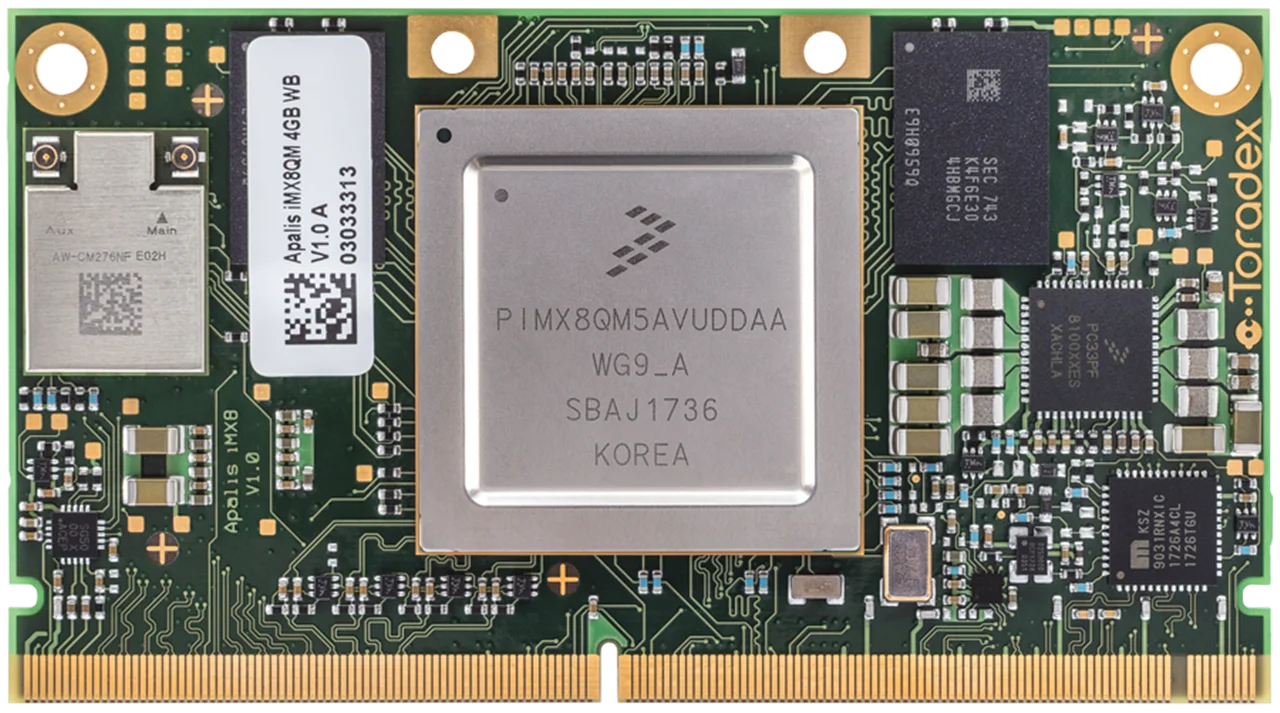

Apalis iMX8 QuadMax 4GB WiFi
Part Number
00371102
CPU
NXP® i.MX 8QuadMax
CPU Type
2x Arm Cortex™-A72
4x Arm Cortex™-A53
Microcontroller
2x Arm Cortex™-M4F
RAM
4GB LPDDR4 (64 Bit)
Flash
16GB eMMC
OS Supports
Torizon
Embedded Linux
Android: Supported by third party
FreeRTOS
Interfaces
USB 3.0, USB 2.0, Ethernet, WiFi, Bluetooth, PCIe, I2C, SPI, UART, IrDA, PWM, GPIO, Analog Input, Serial ATA, SDIO/SD/MMC, CAN, JTAG
Preinstalled OS
Toradex Easy Installer
